Easy and wonderful 3D effects on Open Suse 10.1 with XGL and Compiz
04 August, 2006 by josecc in General.



Would you like to have the better Desktop Linux ? It's possible and not hard to do. Try these simple steps:

1.- Install Open Suse 10.1 on your PC or Laptop (x86 and x86_64 architectures).

Continue ...



ScreenShot

2.- If you are using Open Suse DVD, install "smart" package with all dependencies (use yast2 or rug to do this).

3.- Once you have "smart" package, we will add some channels to be able to install software which is not part of Open Suse 10.1. You need to know in this point, this software not always is stable, ok?. Execute these commands as root:

(Answer 'y', yes after each command)


// Open Suse 10.1 Network source install. x86, x86_64 and ppc architectures.
# smart channel --add inst-source-Suse101 type=yast2 baseurl=http://ftp.leo.org/mirrors/opensuse/distribution/SL-10.1/inst-source/

// Open Suse 10.1 Network Non Oss source install. x86, x86_64 and ppc architectures.
# smart channel --add non-oss-inst-Suse101 type=yast2 baseurl=http://ftp.leo.org/mirrors/opensuse/distribution/SL-10.1/non-oss-inst-source/

// Open Suse UPDATES 10.1 Network source install. x86, x86_64 and ppc architectures.
# smart channel --add updates-Suse101 type=rpm-md baseurl=http://ftp.leo.org/pub/suse/update/10.1/

// New Compiz Quinn repository. XGL, Compiz, etc.
# smart channel --add http://software.opensuse.org/download/Compiz-Quinn/SUSE_Linux_10.1/Compiz-Quinn.repo

// IMPORTANT to have 3D support. (look at http://www.suse.de/~sndirsch/ to Nvidia and ATI HOWTO on Open Suse)

// IF and only IF you have Nvidia Video Card, try this:
# smart channel --add video-nvidia type=rpm-md baseurl=ftp://download.nvidia.com/novell/

// IF and only IF you have ATI Video Card, try this:
# smart channel --add video-ati type=rpm-md baseurl=http://www2.ati.com/suse/

// Netx lines are optional.

// A lot of software ... browse if you like.
# smart channel --add packman type=yast2 baseurl=http://packman.unixheads.com/suse/10.1/

// More a lot of software ... browse if you like.
# smart channel --add suser-guru type=yast2 baseurl=http://ftp.gwdg.de/pub/linux/misc/suser-guru/rpm/10.1/

// Now update the channels content.
# smart update

// Now upgrade all the software in these channels.
# smart upgrade
(Answer 'y', yes and go to take a coffee.)


At this point, we have a system upgrade. On linux, not always is necessary to restart the system, but when a lot of software were update, I think it's necessary to do... restart please.

Ok, now we are going to configure our 3D wonderful desktop.

4.- First, we need to configure our Video Card. Choose one of two cases, if you have Nvidia or ATI video card, else search google to your video card, sorry.


//Nvidia. "kernel-flavor" depends on your installed kernel. Check with "uname -r"
# smart install x11-video-nvidia nvidia-gfx-kmp-"kernel-flavor"

//ATI "kernel-flavor" depends on your installed kernel. Check with "uname -r" for installed default/smp/bigsmp kernel.
# smart install x11-video-fglrx ati-fglrx-kmp-"kernel-flavor"


4.1- Configure video settings with sax2, and be sure you have 3D support enable.

# sax2 -r


5.- Now install or upgrade XGL, Compiz and friends:

# smart install xgl xgl-hardware-list compiz gset-compiz cgwd-themes

Ready!!! ... active XGL support.

Execute this command, logout the session and login again.

# gnome-xgl-switch --enable-xgl


If you have a good luck, now you have a very nice desktop with 3D effects. Else, if not all is ok, disable XGL and ask to Google, it is your friend.


// How to disable XGL support
# gnome-xgl-switch --disable-xgl


6.- Very nice, but ... but there are more: You can use Compiz themes!!. Try this(no need to be root):


$ cgwd --replace &

// Choose a theme.
$ gcompizthemer


7.- (Optional) If you not want to execute 'cgwd --replace &' avery time you login, open '/opt/gnome/bin/gnome-wm' file, go to line 49(aprox) and replace /usr/bin/gnome-window-decorator with /usr/bin/cgwd . Please be carefully with this small hack.


// Before (line 49):
/usr/bin/gnome-window-decorator --replace &

// Now (line 49):
/usr/bin/cgwd --replace &



It's all, Thanks. If you have a comment, please let me to know.

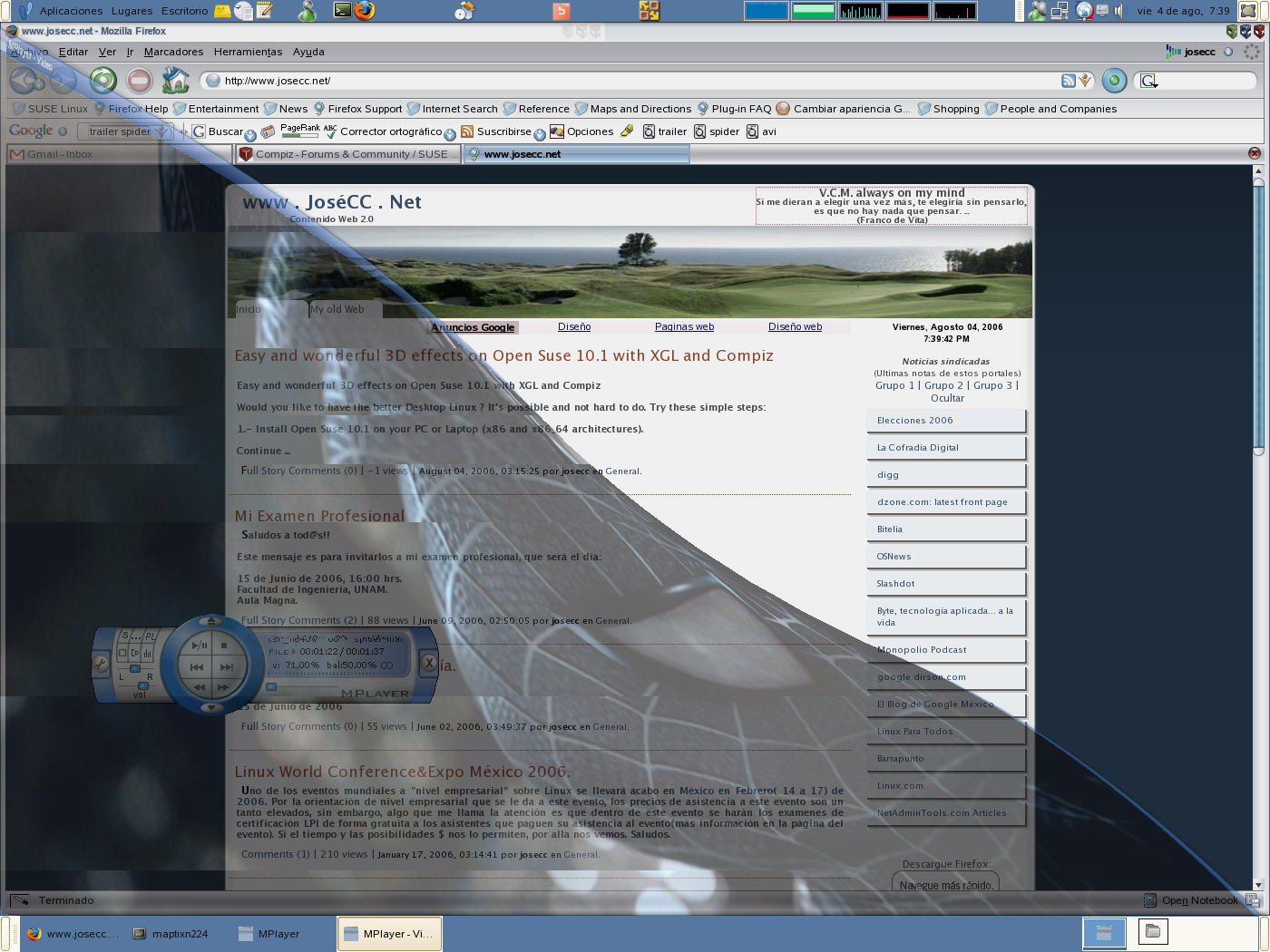

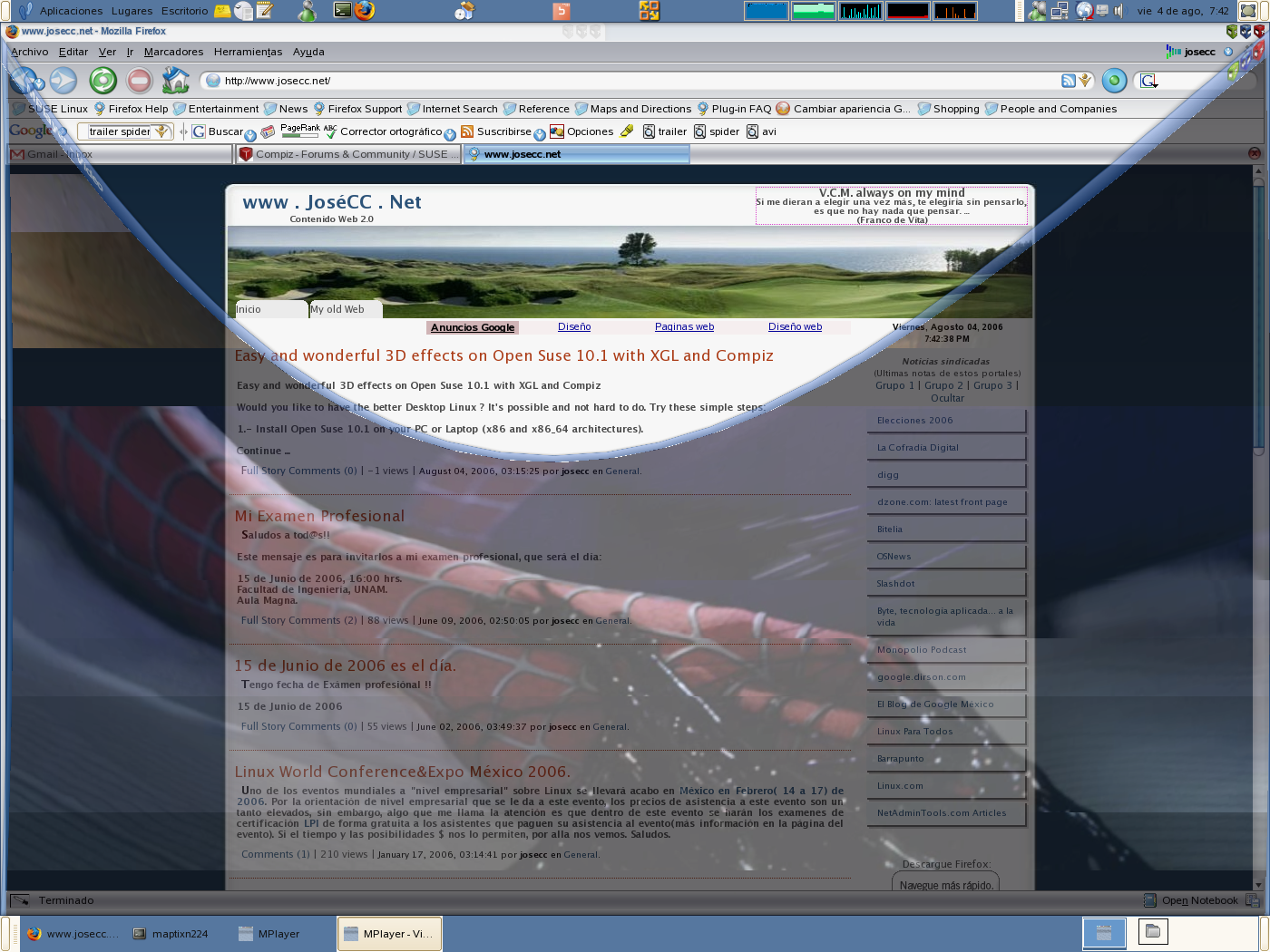

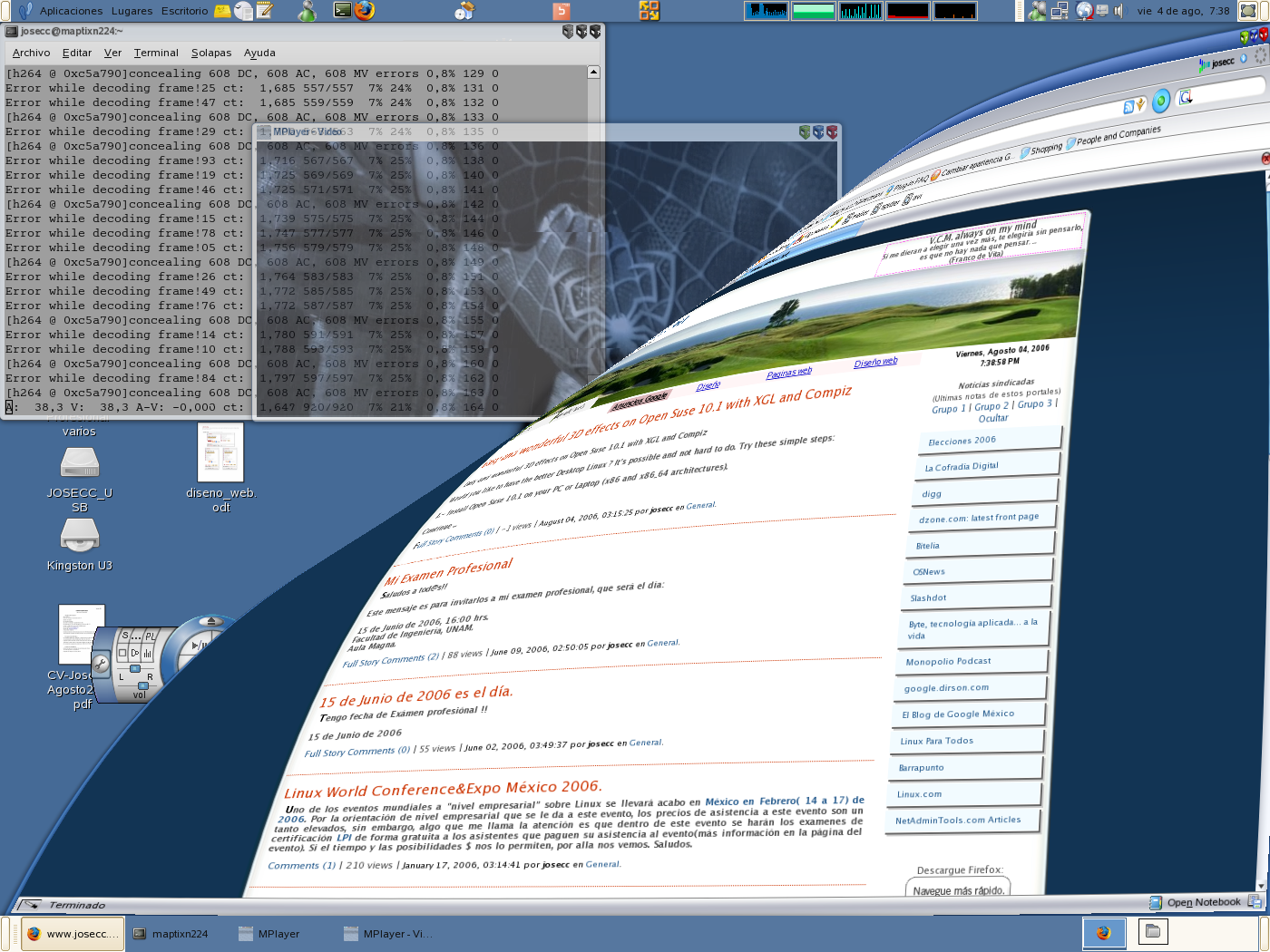

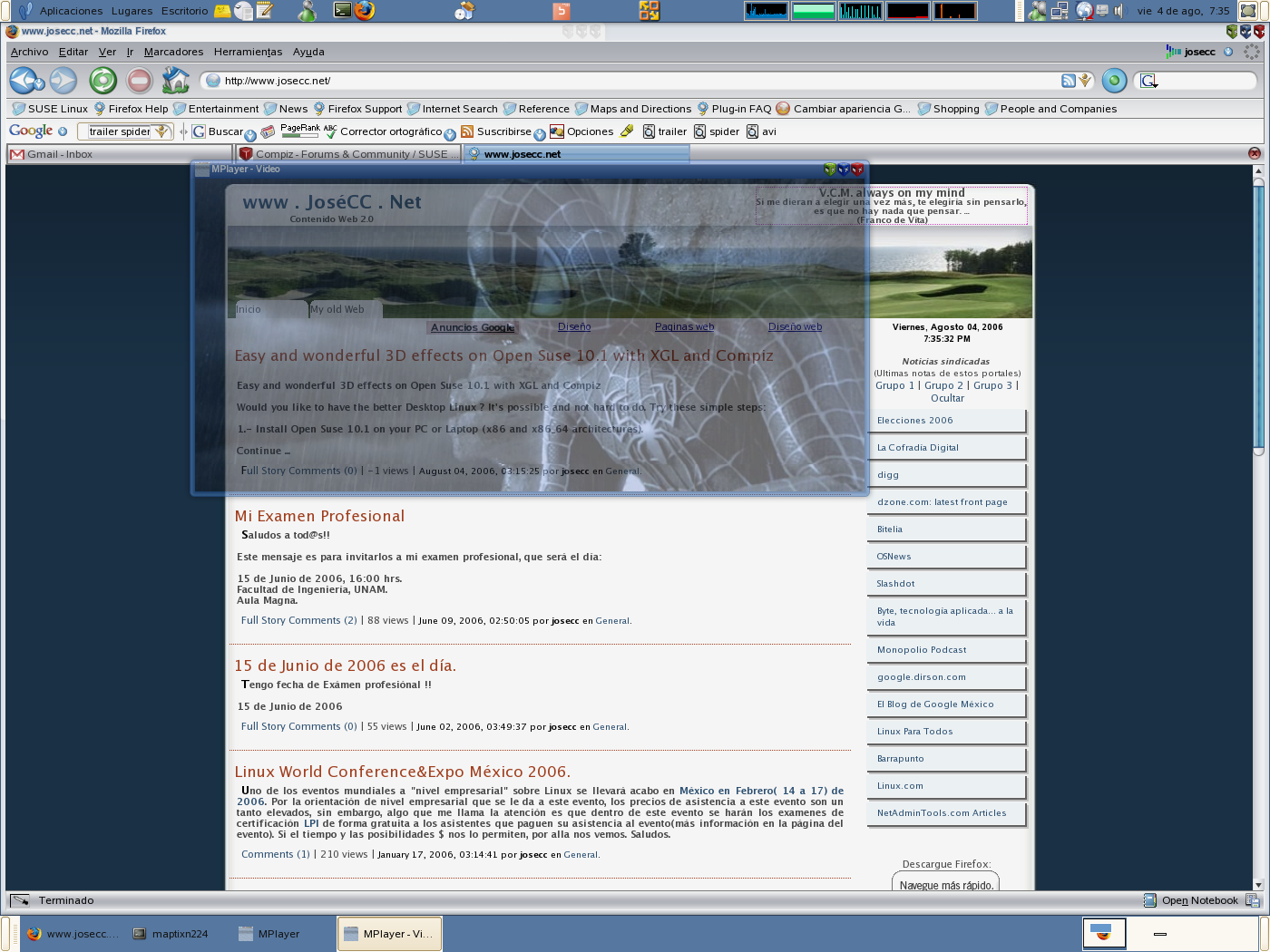

Screenshots:

ScreenShot0 . ScreenShot1


ScreenShot2 . ScreenShot3


josecc+xglcompiz @ g m a i l . c o m



Note: These configurations were tested on 04/08/2006, and some things can change. Look for news on the next links.

Links:
JoseCC Web
http://www.josecc.net

Open Suse
http://www.opensuse.org

Compiz - Forums & Community
http://www.compiz.net

SUSE LINUX Compiz-Quinn packages
http://www.compiz.net/viewtopic.php?id=119

Compiz Blog
http://compiz.blogspot.com/

Nvidia and ATI HOWTO on Open Suse
http://www.suse.de/~sndirsch/
